GENERAL INFORMATION

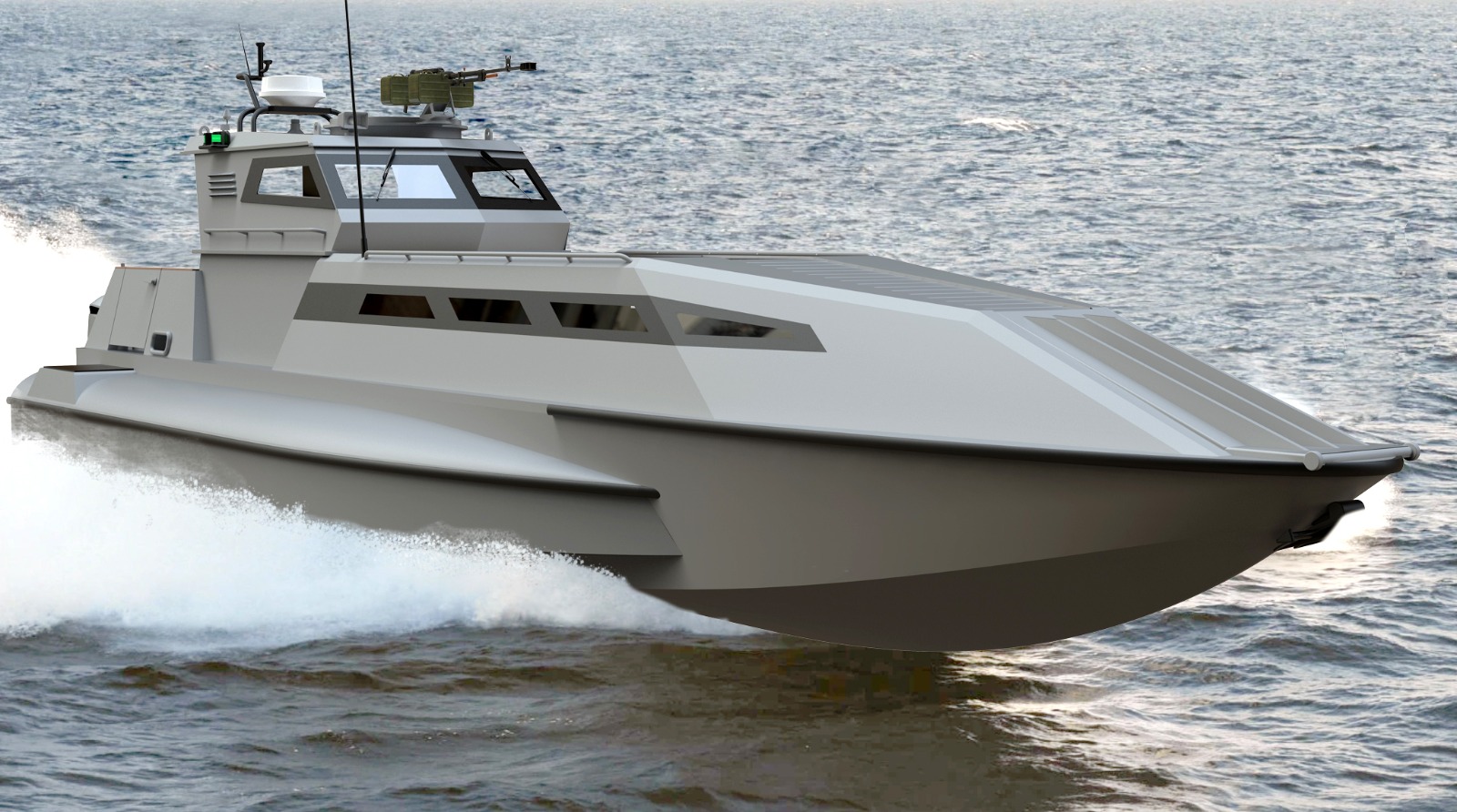

The proposed platform is a new concept of high-speed boat protection of the water area, made by STELS technology.

Multi-purpose universal platform based on the boat type «Sargan» is designed to solve a wide range of patrol and amphibious tasks and involves different types of boats based on a single hull using the modular principle of the formation of the superstructure, equipment, weapons and ballistic protection.

PURPOSE

High-speed patrol boats of protection of water area of type «Sargan» — modern multipurpose patrol vessels intended for use in coastal open areas of the sea for the solution of a wide range of military and patrol operations such as:

— border patrol in territorial waters, control of ships and vessels, combating poaching and illegal immigration, etc.;

— participation in the fight against smuggling (drugs, weapons and people) and anti-terrorist struggle;

— participation in naval limited (military) coastal operations alone or in cooperation with other surface ships;

— various search and rescue options, etc.

MAIN CHARACTERISTIC

Length on the hull without motors, m

Overall length on the reclined motor, m

Overall height of integrally cast parts, m

Length at design waterline, m

Width of the hull without bulls, m

Width at the design waterline, m

Draught , m

Displacement full, t

Maximum speed, kn

Power SEU, hp

Cruising range at max. speed, miles

Cruising range at the speed of the economy stroke, miles

Fuel capacity, l

Capacity of drinking water, l

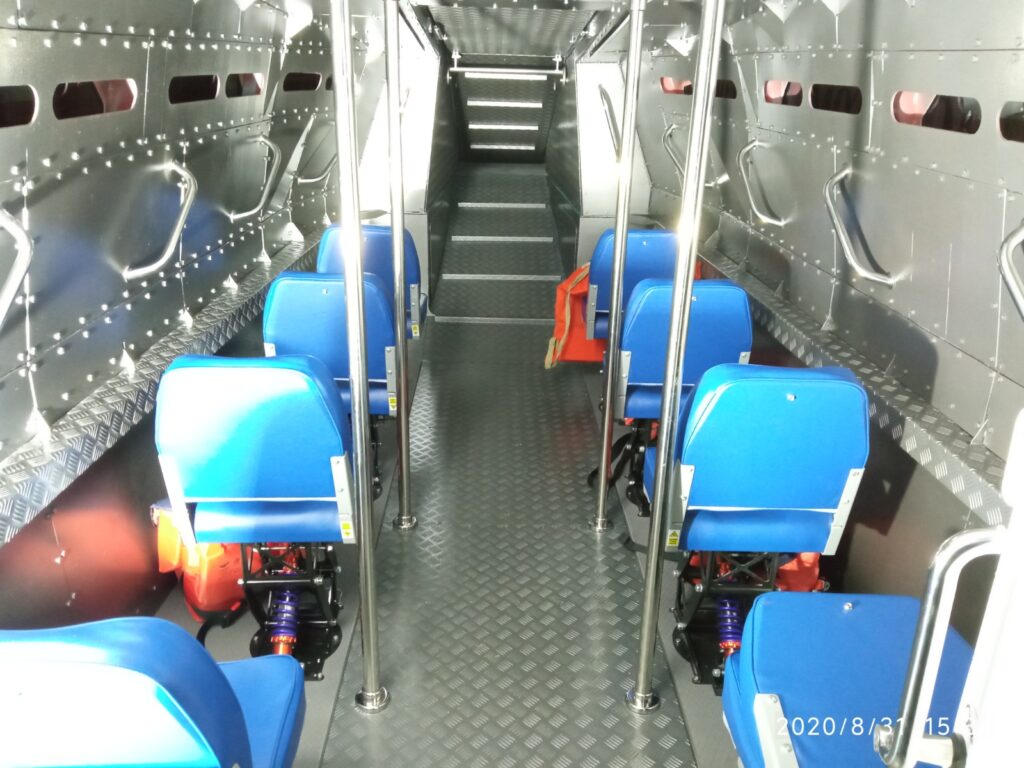

Passenger capacity, pers.

Crew, people

POWER PLANT

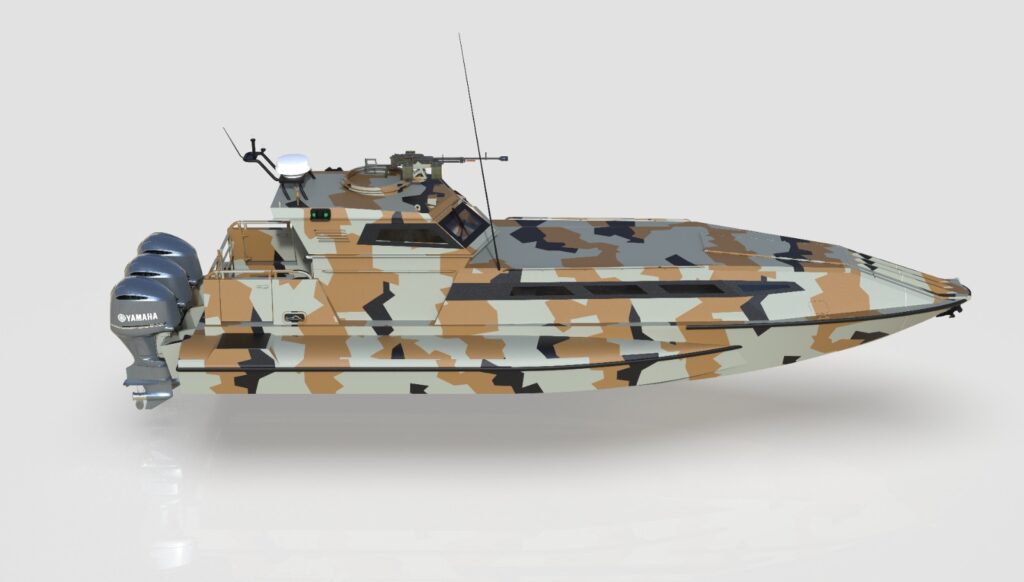

The main engines are outboard motors 2 x Yamaha F350 or any similar for which local service support is available.

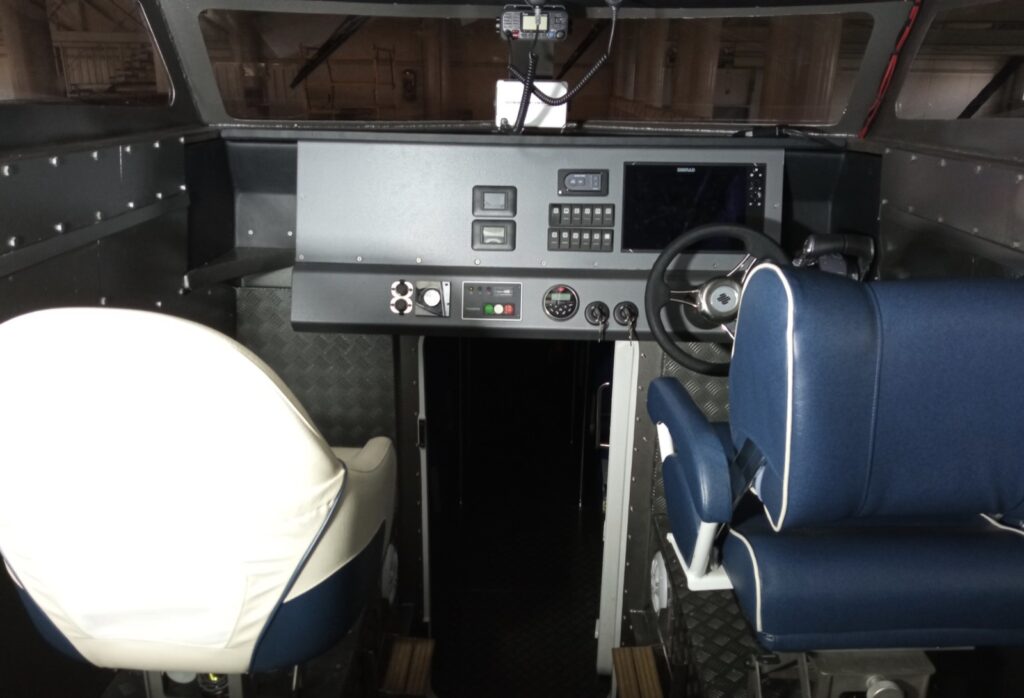

Electronic engine control.

11,5

12,5

2,18

10,21

2,23

2,20

0,53

7,3

40

2х350

200

650

1200

20

8

2

VESSEL TYPE

Patrol and landing boat with increased static stability and means of reducing the amplitude of the onboard pitching due to the onboard RIBs (Rigid Inflatable Balloons).

There is a bow ramp for receiving and landing troops.

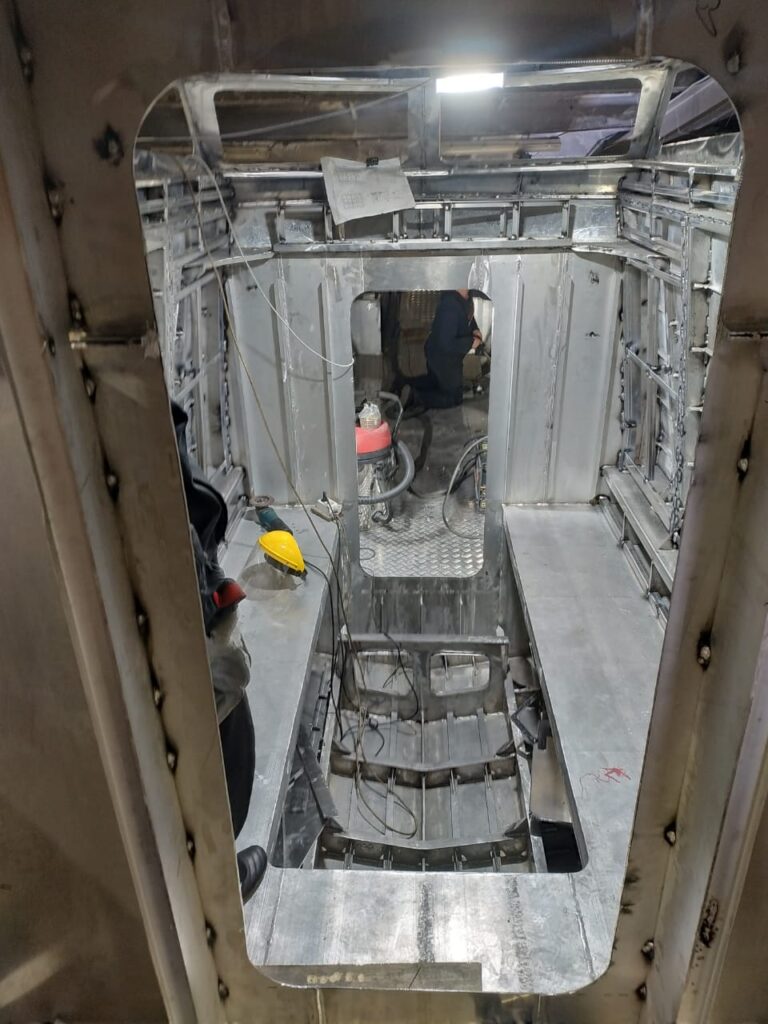

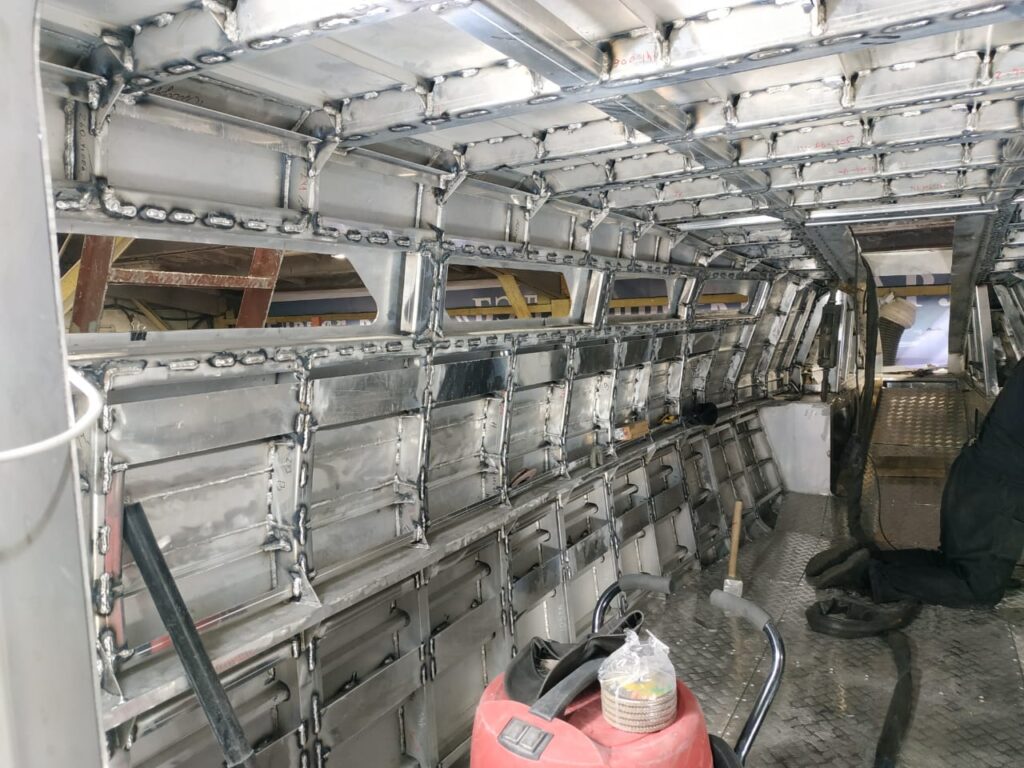

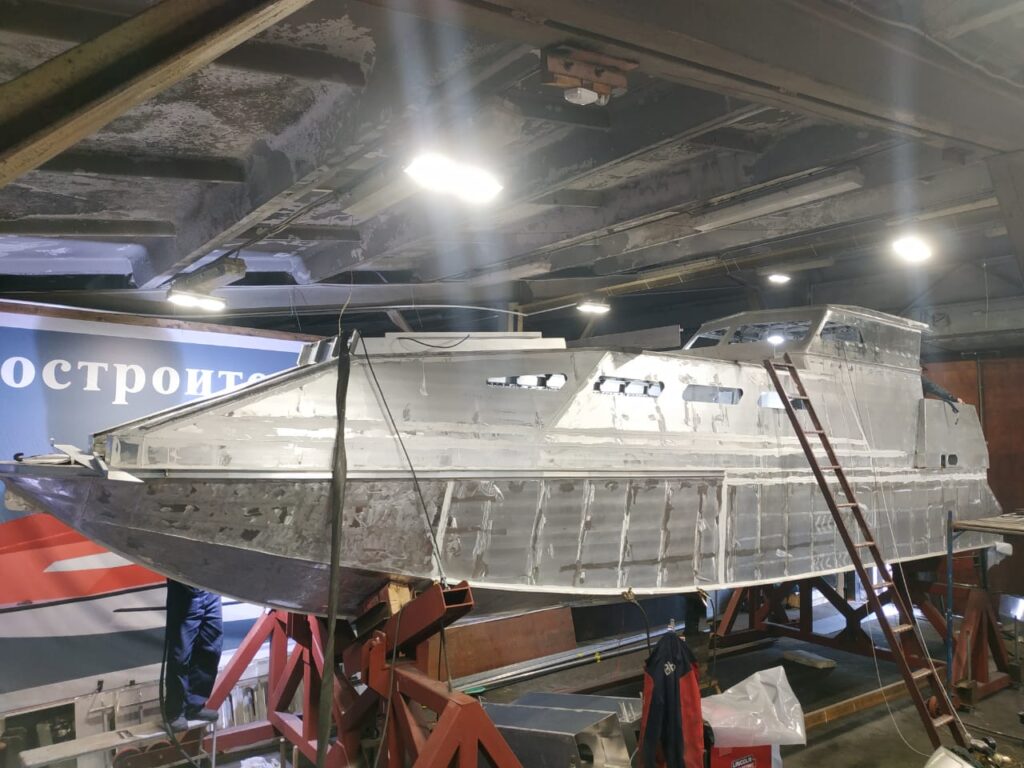

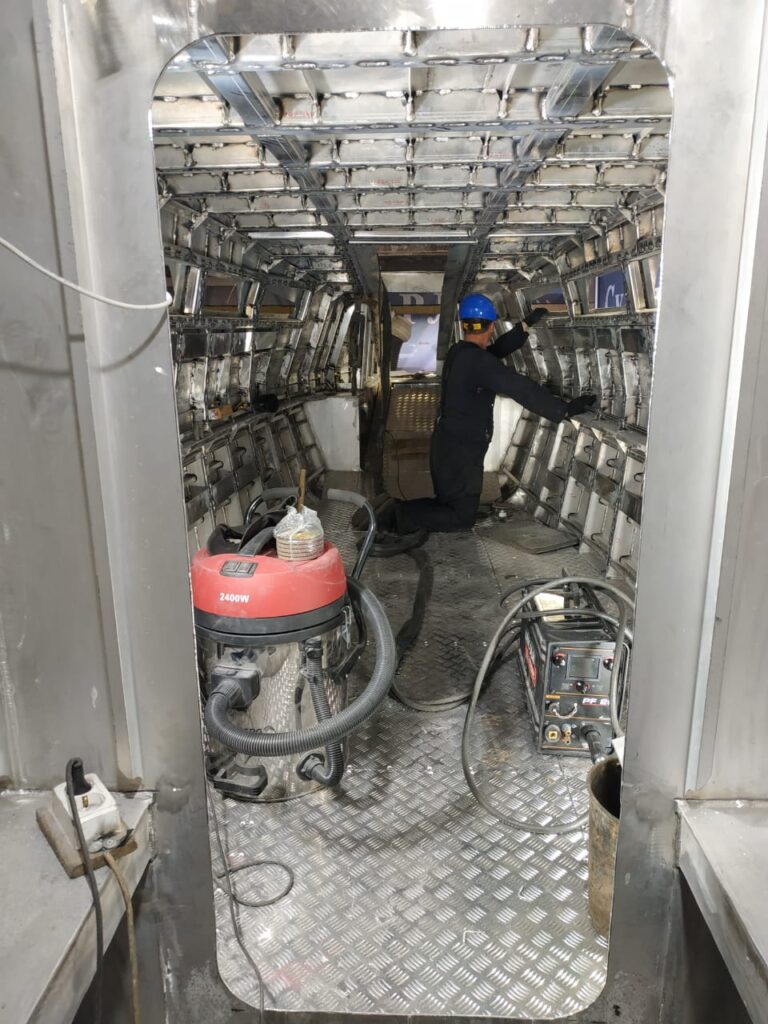

The material of the hull and superstructure — aluminum-magnesium alloy AMG (583M). Ballistic protection class B6 in the area of the hull and superstructure.

The boat has a small linear size, which allows its transportation in a 45HC sea container.

ON-BOARD WEAPON

— 1 heavy machine gun (12.7 mm) on turret;

— 2 machine guns (7.62 mm or 5.45 mm) on pivot mount.
